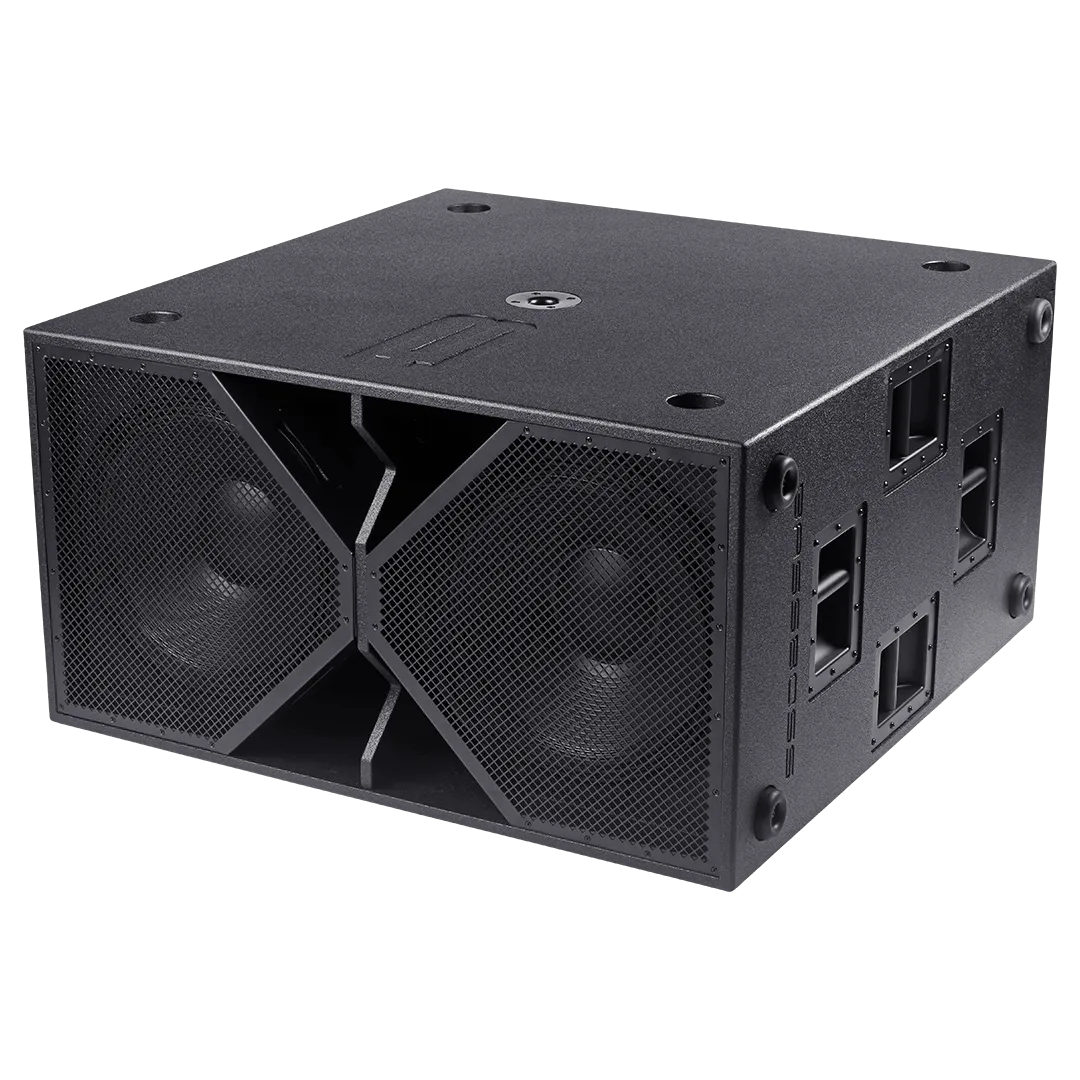

BASSBOSS ZV28 Double 18" Active Subwoofer

/

Loudspeaker Description

Double 18" Self-Powered Vented Direct-Radiating Extended-depth Subwoofer

Frequency Response (±3 dB)

23 – 90Hz

Maximum Sustained Output

134 dB SPL 1m half-space

Max SPL (Peak)*

137 dB SPL 1m half-space

Nominal Dispersion (H° x V°)

360 x 360 - Cardioid mode available with multiple cabinets

Amplification

5000 Watts Class D (2 x 2500W)

Processing

Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

Electrical Input Connector, Amp

Neutrik powerCON True 1 TOP IP65 rated waterproof connectors with pass-though outlet to connect additional loudspeakers. Inlet capacity limited to 15A or 1800W @ 120V total. Do not exceed the inlet capacity.

Electrical Outlet Connector, Amp

Neutrik powerCON True 1 female. Outlet capacity is limited to 6A or 720W. Do not exceed the total capacity of the inlet connector.

Electrical Connector Mains

Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)

Voltage Operating Range

100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)

Current Draw 120V

9A (nominal)

Current Draw 240V

4.5A (nominal)

Signal Input Connector

XLR-F

Signal Output Connector

XLR-M (direct pass-through only)

Enclosure Type

Direct radiating vented enclosure, optimally tuned for extended low frequency response with linear output and high power handling

Transducer Low Frequency

2 x 18” (457mm) neodymium motor woofers with 4.5 in. (115mm) CCAW voice coils

Cabinet Construction

CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 8 steel bar handles. 2 x 35mm steel pole sockets. 12 rubber feet. 4 interlocking foot pockets. 16 X M10 threaded flypoints

Exterior Finish

High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black

Grille

Perforated, powder-coated steel

Dimensions (HxWxD)

22.5 in. x 42 in. x 42 in. (Height of feet 7/8")

Net Weight

235 lbs. (106.5 kg)
