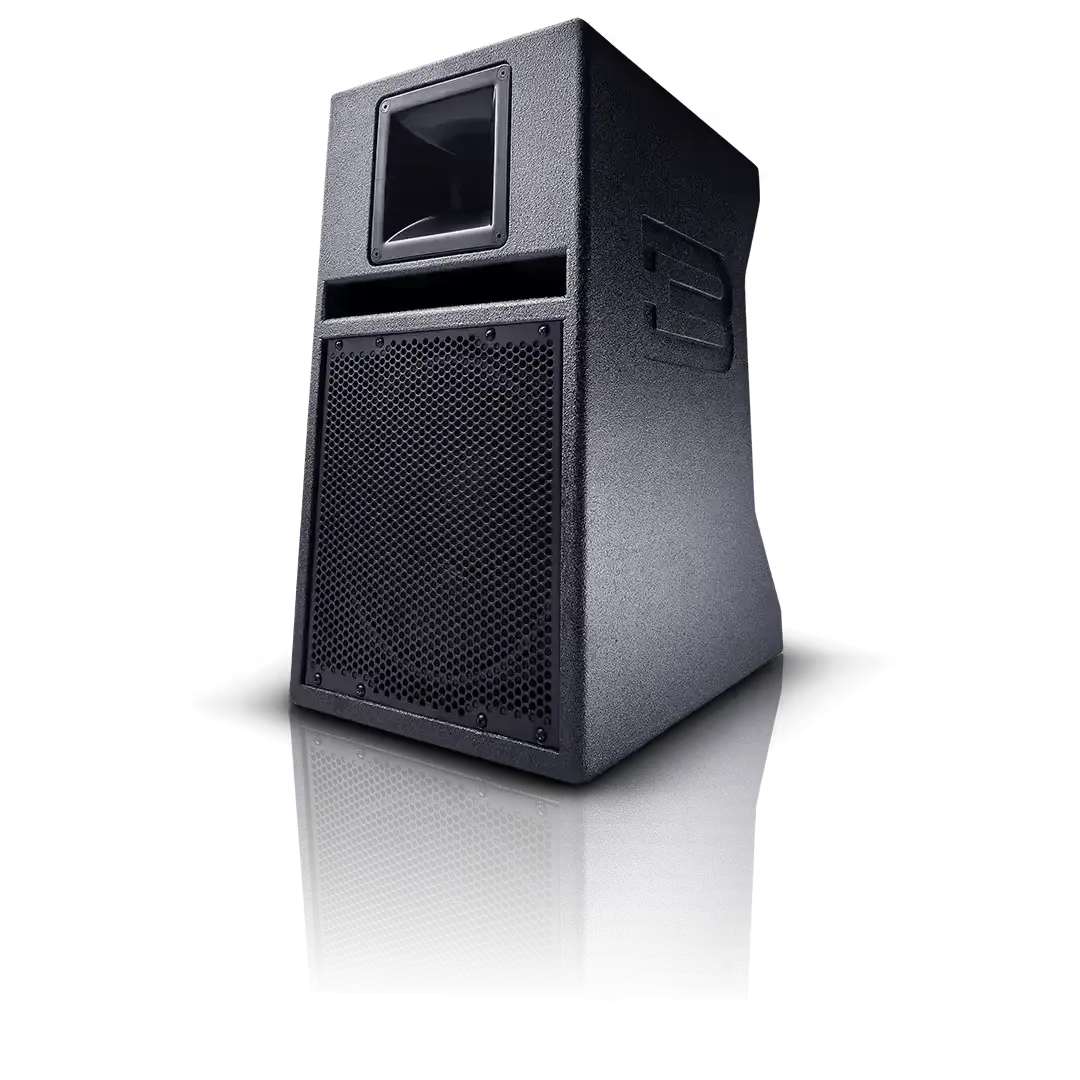

BASSBOSS SV9 Active Speaker

Loudspeaker Description

2-way active, Single 9" Self Powered, Vented, Direct-radiating Full-range

Frequency Response (±3 dB)

50 – 19,000Hz

Maximum Sustained Output

118 dB SPL 1m half-space

Max SPL (Peak)*

121 dB SPL 1m half-space

Nominal Dispersion (H° x V°)

90 x 60 (Rotatable)

Amplification

1200 Watts Class D, 2 Channel

Processing

Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

Electrical Input Connector, Amp

Neutrik powerCON True 1 TOP IP65 rated waterproof connectors with pass-though outlet to connect additional loudspeakers. Inlet capacity limited to 15A or 1800W @ 120V total. Do not exceed the inlet capacity.

Electrical Outlet Connector, Amp

Neutrik powerCON True 1 female. Outlet capacity is limited to 13A or 1600W @120V. Do not exceed the total capacity of the inlet connector.

Electrical Connector Mains

Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)

Voltage Operating Range

100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)

Current Draw 120V

1.4A (nominal)

Current Draw 240V

0.7A (nominal)

Signal Input Connector

XLR-F

Signal Output Connector

XLR-M (direct pass-through only)

Enclosure Type

2-way full-range/mid-high. Direct radiating vented LF section, horn-loaded HF section

Transducer Low Frequency

1 x 9 in. diameter (220mm) neodymium motor woofer with 2.5 in. (64mm) copper winding voice coil and carbon-fiber cone

Transducer High Frequency

1.5 in. (38mm) diaphragm compression driver on 1 in. (25mm) throat 90 x 60 degree constant directivity horn

Cabinet Construction

CNC machined 15mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket

Exterior Finish

High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black

Grille

Perforated, powder-coated steel

Dimensions (HxWxD)

18in. (45.7cm) x 10 in. (25.4cm) front, 7 in. (18cm) rear, x 15 in. (38cm)

Net Weight

27.5 lbs (12.8 kg)
