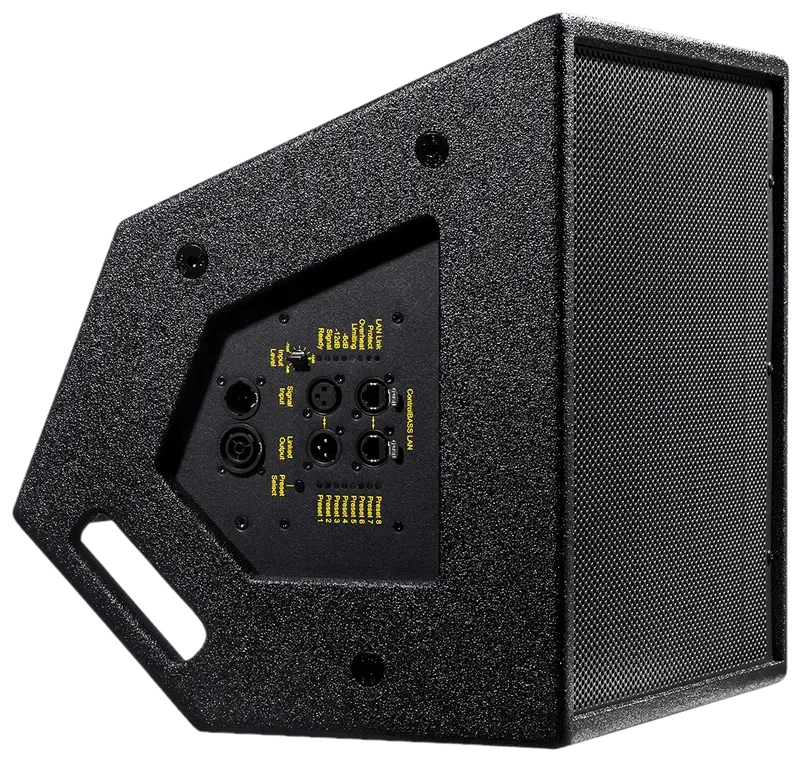

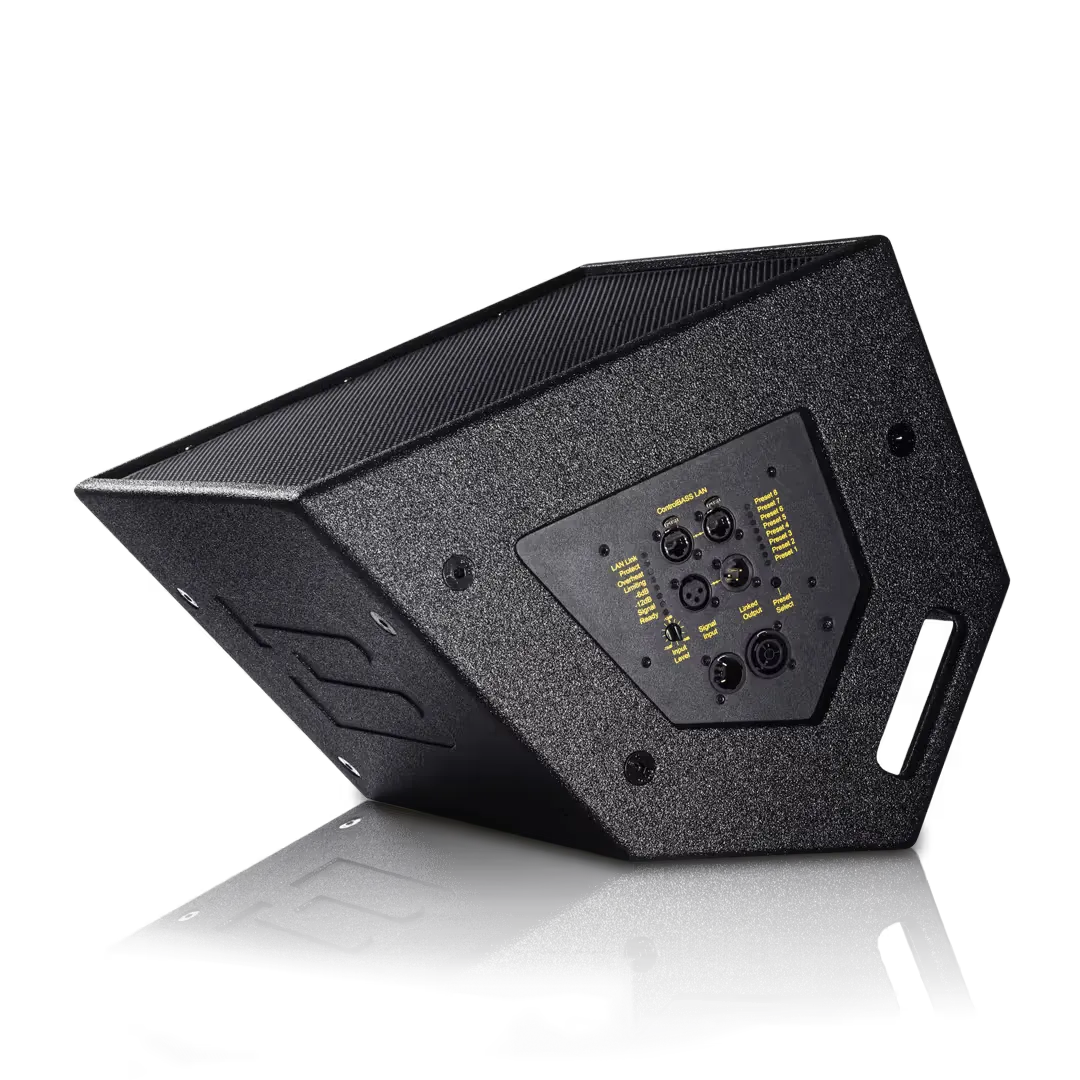

BASSBOSS CCM12 12" Coaxial Active Monitor

/

Loudspeaker Description

New! 2-way active 12" monitor with presets for full-range and mid-high operation

Frequency Response (±3 dB)

50Hz - 19kHz (Full Range - Preset 1)

Maximum Sustained Output

123 dB SPL 1m half-space

Max SPL (Peak)*

126 dB SPL 1m half-space

Nominal Dispersion (H° x V°)

80 x 80 (Conical)

Amplification

1200 W Class D, 2 Channel

Processing

Integrated comprehensive DSP provides all necessary high-pass and low pass filters, equalization, phase alignment and limiting

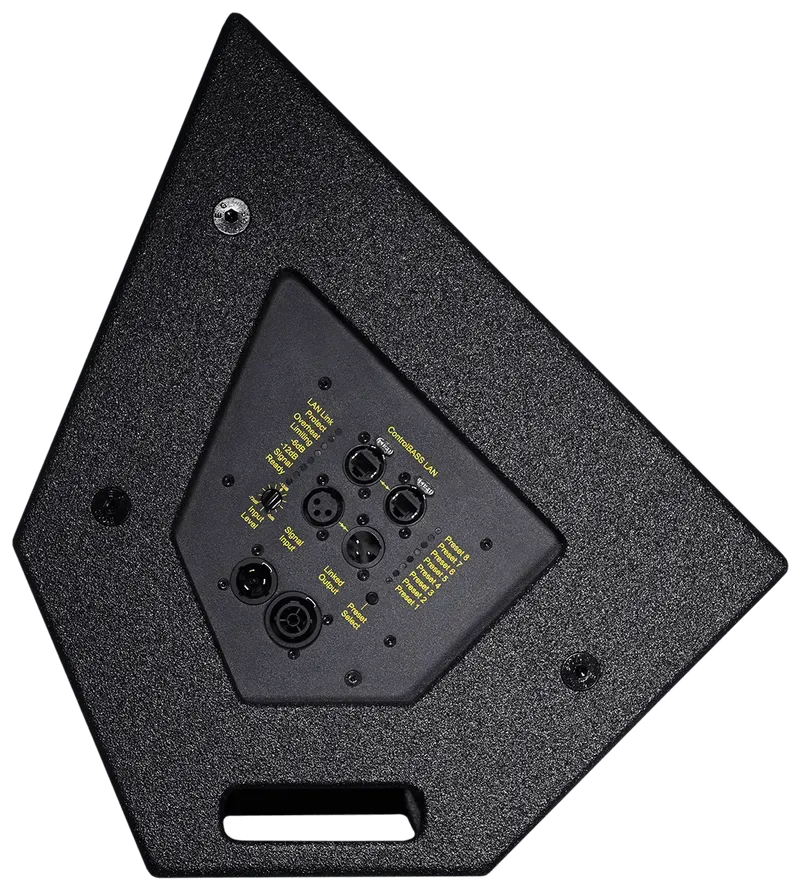

Electrical Input Connector, Amp

Neutrik powerCON True 1 TOP IP65 rated waterproof connectors with pass-though outlet to connect additional loudspeakers. Inlet capacity limited to 15A or 1800W @ 120V total. Do not exceed the inlet capacity.

Electrical Outlet Connector, Amp

Neutrik powerCON True 1 female. Outlet capacity is limited to 10A or 1200W. Do not exceed the total capacity of the inlet connector.

Electrical Connector Mains

NEMA 5-15 (Edison) standard 3-pin grounded plug

Voltage Operating Range

100 - 240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)

Current Draw 120V

1.4A (nominal)

Current Draw 240V

0.7A (nominal)

Signal Input Connector

XLR-F

Signal Output Connector

XLR-M (pass-through only)

Enclosure Type

Birch wood enclosure - Sealed direct radiating low-frequency section and co-axially horn-loaded high-frequency section

Transducer Low Frequency

1 x 12 in. diameter (300 mm) neodymium motor woofer with 3 in. (76mm) copper voice coil

Transducer High Frequency

3 in. (76mm) diaphragm compression driver on 1.4 in. throat 80-degree conical horn

Cabinet Construction

15 mm Birch plywood. Dado joinery. Equipped with a 35mm steel pole socket

Exterior Finish

Black weatherproof bonded high-pressure polyurea

Grille

Perforated, powder-coated Steel with Hydrophobic Cloth liner

Dimensions (HxWxD)

14 in. (35.5cm) x 14 in. (35.5cm) x 11 in. (28cm)

Net Weight

30 lbs (13.5kg)
