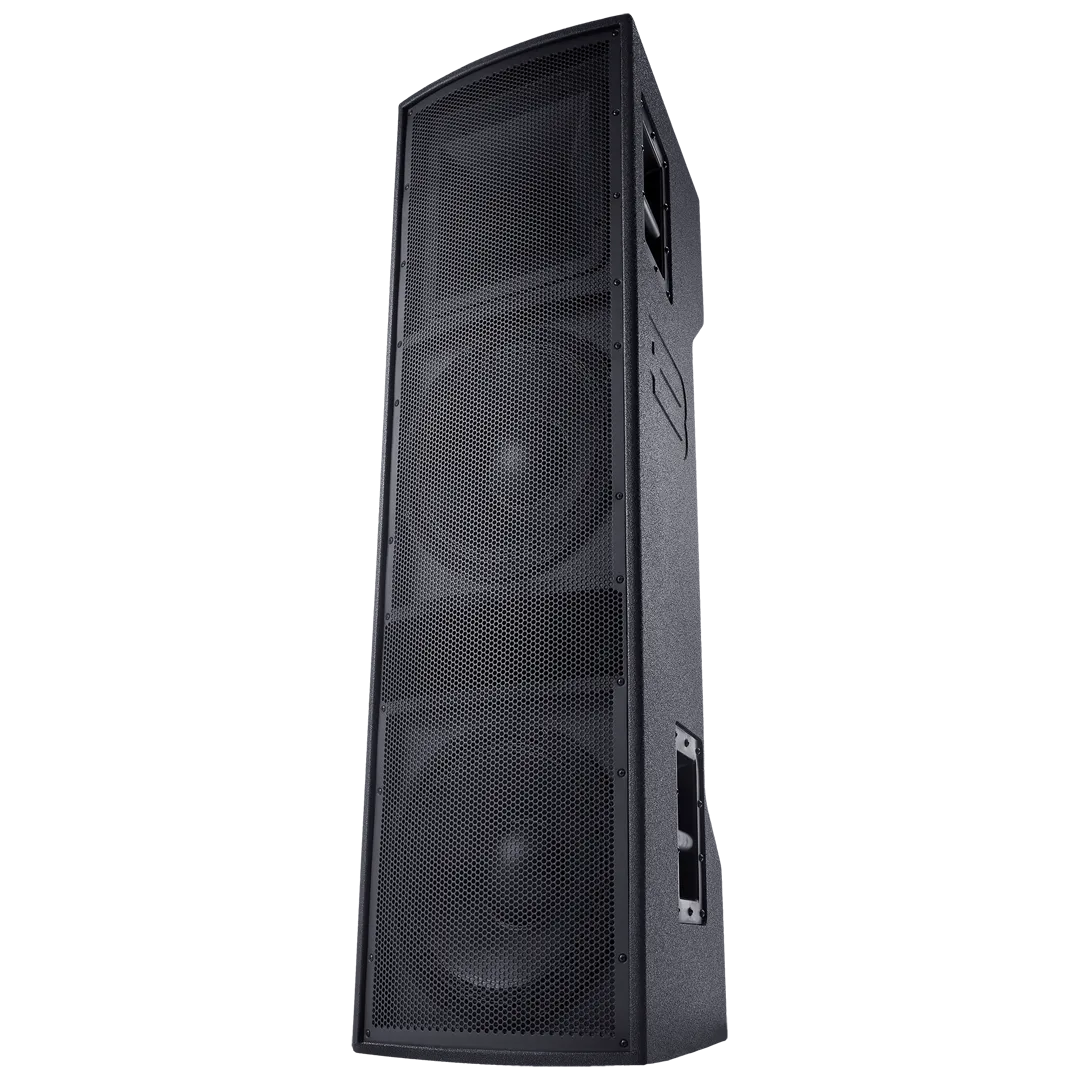

BASSBOSS AT212 - Dual 12" Active Speaker

/

Loudspeaker Description

2-way Dual 12" Self-powered Vented Direct-radiating Full-range with rotatable 80 x 60 degree Constant Directivity Horn

Frequency Response (±3 dB)

50 – 18,000Hz

Maximum Sustained Output

136 dB SPL 1m half-space

Max SPL (Peak)*

142 dB SPL 1m half-space

Nominal Dispersion (H° x V°)

80 x 60 (Rotatable)

Amplification

3200 W Class D, 2 channel; 2400W LF - 800W HF

Processing

Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

Electrical Input Connector, Amp

Neutrik powerCON True 1 TOP IP65 rated waterproof connectors with pass-though outlet to connect additional loudspeakers. Inlet capacity limited to 15A or 1800W @ 120V total. Do not exceed the inlet capacity.

Electrical Outlet Connector, Amp

Neutrik powerCON True 1 female. Outlet capacity is limited to 10A or 1200W. Do not exceed the total capacity of the inlet connector.

Electrical Connector Mains

Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)

Voltage Operating Range

100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)

Current Draw 120V

4.6A (nominal)

Current Draw 240V

2.3A (nominal)

Signal Input Connector

XLR-F

Signal Output Connector

XLR-M (direct pass-through only)

Enclosure Type

2-way, Active, Broad Range. Direct radiating vented LF section, horn-loaded HF section

Transducer Low Frequency

2 x 12 in. diameter (300mm) neodymium motor woofer with 3.5 in. (88mm) voice coils, waterproof cone

Transducer High Frequency

1 x 3 in. (76mm) diameter diaphragm compression driver with 1.4" (35mm) exit mounted to 80 by 60 degree constant directivity horn

Cabinet Construction

CNC machined 18 and 15mm Birch plywood with extensive bracing and dado joinery. 4 x M10 fly-points. 4 x steel bar handles. 1 x 35mm steel pole socket

Exterior Finish

High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black

Grille

Perforated, powder-coated steel

Dimensions (HxWxD)

47.75 in. x 14.3 in. x 17.75 in. with 5.3 in. wide rear

Net Weight

99 lbs. (45 kg)
